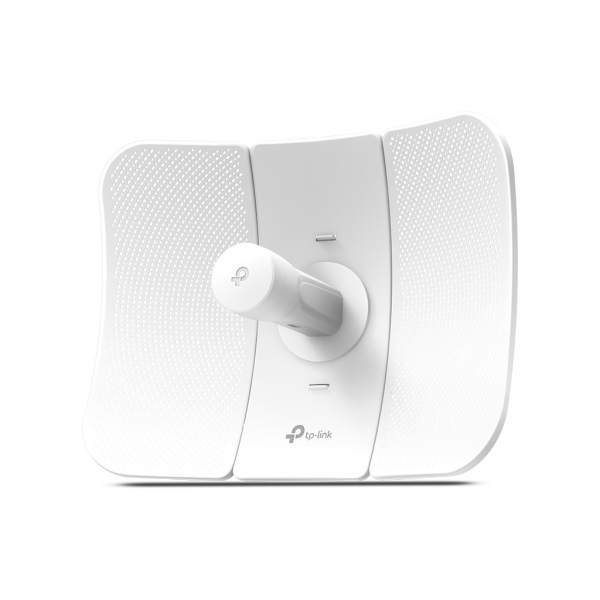

TP-LINK CPE710, 867Mbps, 5Ghz WiFi, 23dbi Anten, Noktadan Noktaya, Dış Mekan, Access Point CPE

İnternete Özel Fiyat

HAVALE İLE %3 İNDİRİM 0,00 TL

(Ödeme Aşamasında Otomatik İndirim Sağlar)

4.189,68₺

Görüntüleme Sayısı 306 zaman

24 AY Garantili

Markalar TP-Link

Ürün Kodu: 005.ACC.TPL.CPE710

Stok Stokta var

Adet

Alışveriş Listeme ekle
Karşılaştırma listeme ekle

Etiketler: link cpe710 867mbps 5ghz wifi 23dbi anten noktadan noktaya mekan

DONANIM ÖZELLİKLERİ

İşlemci

Qualcomm 750MHz CPU, MIPS 74Kc

Bellek

128 MB DDR2 RAM, 16 MB Flash

Arabirim

1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button

Güç Kaynağı

Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC

Boyutlar ( W X D X H )

366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)

Anten Kazancı

23 dBi

Anten Beamwidth

9° (Azimuth)/7° (Elevation)

Koruma

15 KV ESD Protection
6 KV Lightning Protection

Muhafaza

Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

KABLOSUZ ÖZELLİKLERİ

Kablosuz Standartlar

IEEE 802.11a/n/ac

Kablosuz Hızı

Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)

Frekans

5.15~5.85 GHz

İletim Gücü

Max. 27 dBm (Adjustable power by 1dBm)

YAZILIM ÖZELLİKLERİ

Ağ Yapılandırma

WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

Kablosuz Konfigürasyonlar

Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP

Yönetim

Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

Sistem Araçları

Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment

Sistem Düzeyindeki Optimizasyonlar

Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTÖR ÖZELLİKLERİ

Boyutlar (H X W X D)

85.8×43.9×29.7 mm

Arayüzler

1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)

Buton

Remote Reset Button

Güç Durum LEDleri

Green

Giriş

100-240VAC, 50/60Hz

Çıkış

24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Verimlilik

>84.29%

Sertifikalar

CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

DİĞERLERİ

Sertifika

CE, FCC, RoHS, IP65, IC

Paket İçeriği

Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide

Sistem Gereksinimleri

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Ortam

Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

TP-LINK CPE710, 867Mbps, 5Ghz WiFi, 23dbi Anten, Noktadan Noktaya, Dış Mekan, Access Point CPE
