Overview

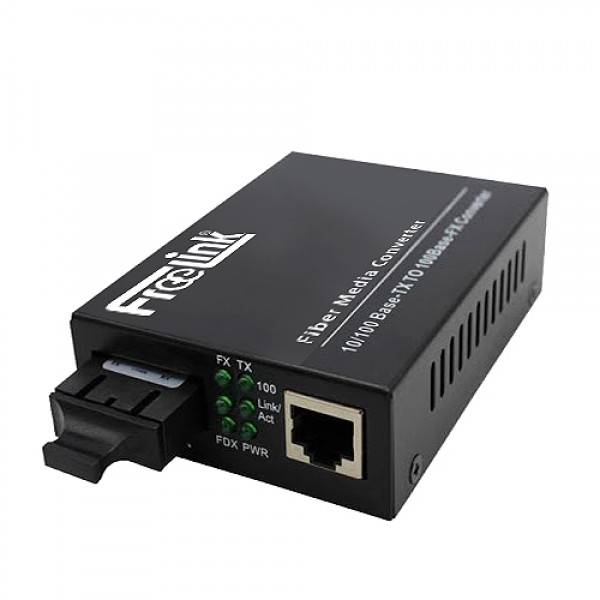

The NuFiber® single fiber single mode media converters are designed to transmit and receive 10/100Mbps data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.
Key Features
1. Plug and play, high performance, Low power consumption
2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
3. Auto-negotiation support on RJ45 port
4. Auto-Negotiation of duplex(HDX/FDX) on RJ45 port
5.Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.
6. Auto MDI/MDI-X support on RJ45 port
7. Distances up to: 2 km Multimode, 120 km Single Mode
8. ST, SC, FC optical connectors
9. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
10.External power adapter
Applications
>Access Control Systems
>Building and Environmental Control Systems
>Tamper Switch
>10/100 Mbps Ethernet Media Converter
>High Speed Computer Links
Technical Specifications
| Parameters |
Specifications |
| Standards |
IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T) |
| Wavelength |
Multi-mode: 850 nm or 1310nm
Single-mode: 1310 nm , 1550 nm |
| Transmission Distance |
Fiber:
Multi-mode: 2 km (fiber size: 62.5/125 or 50/125 μm)
Single-mode: 25/40/60/100/120 km
UTP:
Cat. 3/4/5/6: 100 m
|
| Port |
One RJ45 port
One Fiber port (ST/SC/FC Optional, LC:SFP Module)
|
| MDI/MDI-X |
Auto selection |
| MAC Address Table |
I K |
| Buffer Size |
1Mbit |
| Flow Control |
Duplex:flow control ; Half duplex:back pressure |
| Time Delay |
Store-and-forward:9.6us,Straight-through:0.9us |
| BER |
<1/1000000000 |
| Power Supply |
Outside: 5 V DC 1 A
Built-in: 100 V to 265V AC 50 Hz to 60 Hz |
| Operating Temp. |
0 °C to +70 °C |
| Storage Temp. |
-20 °C to +80 °C |
| Relative Humidity |
5% to 90% (non-condensing) |
| Dimensions |
95 mm × 70 mm × 25 mm |
| Net Weight |
0.165 kg |
