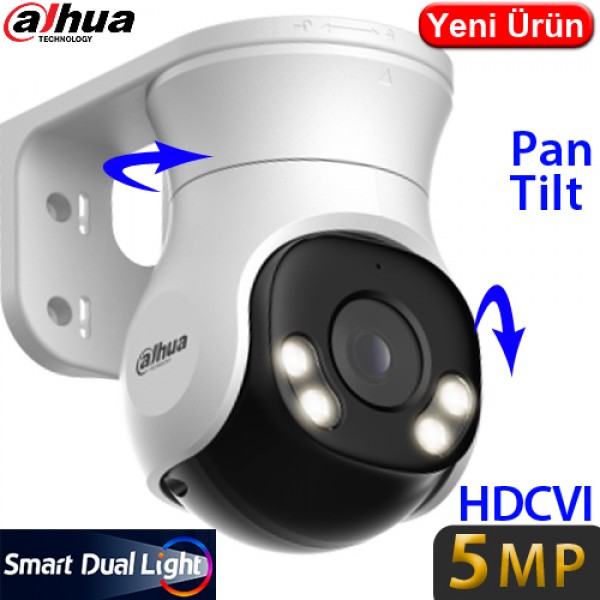

DAHUA (HAC-PT1500A-IL-A-360B-S2) 5MP DUAL LIGTH DAHİLİ MİKROFONLU HDCVI PT KAMERA

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s;
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.05 [email protected] (Color, 30 IRE)
0.005 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)

Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

4 (Warm light);4 (IR light)

Angle Adjustment

Pan: 0°–355°
Tilt: 0°–90°

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 112°; V: 58°; D: 134°
3.6 mm: H: 87°; V: 46°; D: 104°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.4 m (4.59 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

64.0 m
(209.97 ft)

25.6 m
(83.33 ft)

12.8 m
(41.67 ft)

6.4 m
(21.00 ft)

3.6 mm

79.4 m
(260.50 ft)

31.8 m
(104.33 ft)

15.9 m
(52.17 ft)

7.9 m
(25.92 ft)

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; [email protected] fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto;Area white balance

Gain Control

Auto;Manual

Noise Reduction

2D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 6.4 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP66

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Plastic

Product Dimensions

92.9 mm × 91.3 mm × 130 mm (3.66" × 3.59" × 5.12")

Net Weight

0.39 kg (0.86 lb)

Gross Weight

0.64 kg (1.41 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
