ARD512-W2(868)

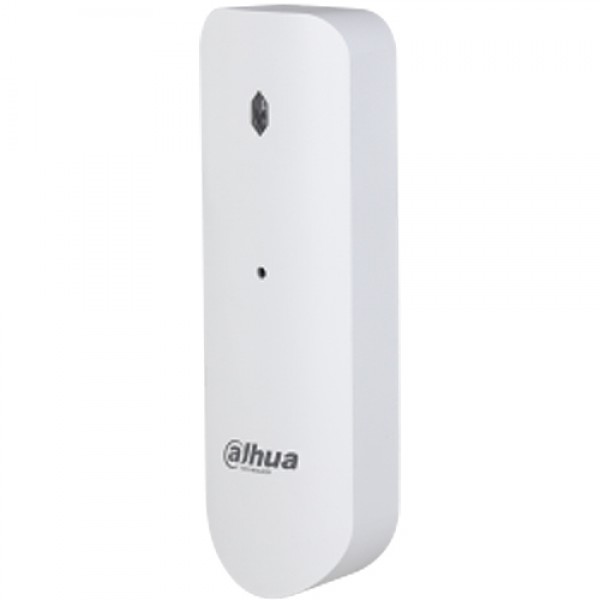

Dahua Wireless Glass Break Detector
> Detects when the glass is broken, triggering alarms for different types of glass such as tempered, double-glazed, laminated, wired, plate and float glass.
> Detects high and low frequency sounds at the same time, and uses algorithms to reduce the occurrence of false alarms.
> Two-channel alarm input.
> Cloud update and automatic recovery from update failure.
> The two-way wireless encrypted communication mechanism improves the security and stability of communication.
> With the wireless frequency hopping mechanism, the device auto matically hops to other available frequency bands when the original frequency band is being interfered with by other wireless radios, to ensure communication remains stable.
|
Port
|
|
Alarm Input
|
2 (NO/NC)
|
|
Microphone
|
Highly-sensitive omnidirectional microphone
|
|
Function
|
|
Button
|
1 × power button
|
|
Remote Update
|
Cloud update
|
|
Low Battery Detection
|
Yes
|
|
Tamper
|
Yes
|
|
Technical
|
|
Detection Range
|
Max. 9 m (29.53 ft)
|
|
Specifications of Glass to be Detected
|
Glass type: Tempered, double-glazed, laminated, wired, plate and float
Glass thickness: 2.4 mm–6.4 mm (0.09""–0.25"")
Glass size: 0.3 m × 0.3 m to 3 m × 3 m (0.98 ft × 0.98 ft to 9.84 ft × 9.84 ft)
|
|
Test Mode
|
Yes
|
|
LED Indicator
|
1 × green alarm indicator
|
|
Scenario
|
Indoor
|
|
Operating Current
|
45 uA
|
|
Alarm Current
|
50 mA
|
|
Wireless
|
|
Carrier Frequency
|
868.0 MHz–868.6 MHz
|
|
Communication Mechanism
|
Two-way
|
|
Communication Distance
|
1,600 m (5,249.34 ft)
|
|
Encryption Mode
|
AES128
|
|
Frequency Hopping
|
Yes
|
|
General
|
|
Power Supply
|
1 × CR123A battery
|
|
Battery Model
|
CR123A
|
|
Battery Life
|
3 years (The external input type is NO)
1 year (Both external sensors are enabled, and the input type is NC)
|
|
Power Consumption
|
Max. 150 mW
|
|
Operating Temperature
|
–10 °C to +55 °C (+14 °F to +131 °F) (indoor)
|
|
Operating Humidity
|
10%–90% (RH)
|
|
Product Dimensions
|
107.8 mm × 34.5 mm × 24.8 mm (4.24" × 1.36" × 0.98")
|
|
Net Weight
|
45 g (0.10 lb)
|
|
Gross Weight
|
130 g (0.29 lb)
|
|
Installation
|
Surface mount
|
|
Casing Material
|
PC and ABS
|
|
Appearance Color
|
White
|
|
Certifications
|
CE
|
|
Anti-corrosion Level
|
Basic Protection
|
|
Packaging Dimensions
|
95 mm × 43 mm × 139 mm (3.74" × 1.69" × 5.47")
|
